重锤式料位计

产品概述

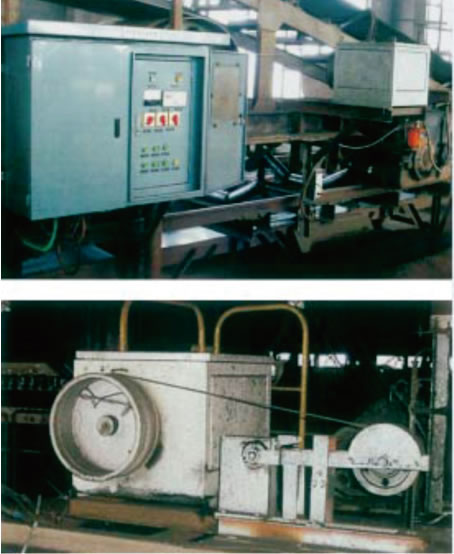

        ZL-1C型重锤式料位计适用于测晕敞口或密闭容器内粉料、颗粒料、块料等的料位检测，特别适合于冶金行业较大比重物料场合。它能帮助用户及时准确地掌握料槽内物料的进料和消耗情况，以及在自动控制系统中作为槽位的自动控制和管理用，是物料储运系统完全全自动无人操作的理想工具。

       该产品是我公司与宝钢共同开发研制的项科技成果。它是我公司总结了1 0多年重锤式料位计制造、应用经验、吸收了国外同类产品的优点后，在本公司原有产品基础上优化改型的新产品。它采用了微电脑技术，具有结构简单、定能稳定、安装调试方便、功能强、适应面广等优点。

ZL-1C type hammer type material level meter used in measurement exposure or airtight container in powder. pellet. the mass material material level detection, especially for in metallurgical industry for a large proportion of material occasions It can help users to timely and accurate grasp of the material in the chute feed and consumption, and the automatic control system as a slot of the automatic control and management, and is an ideal tool for material storage and transportation system fully automatic unmanned operation This produa is one of the scientific and technological achievements in the joint development of our company and Baosteel. It is summed up the compan'/ more than 10 years of heavy hammer type material position meter manufacturing and applicafion of experience. absorbing the advantages of similar foreign products. in the company's products on the basis of the original retrofit and optimization of new products It adopts microcomputer technology. which has the advantages of simple structure. stable stability. convenient installation and debugging, strong function. wide adaptability and so on

产品特点

使用重锤式探头，工作可靠计晕准确、锤头提升力矩大，可在进料或排料时使用。它可以应用在高粉尘、水蒸气等场合的物料料位的检测中。

具有过扭矩检测和控制功能，能够有效地保护电机，并使钢丝绳在埋锤时玎不会被拉断，过扭矩消失后能自动恢复到测定状态。

具有自动测定、遥控测定、禁止测定等功能。可根据用户控制需要选用，还可适合车载式使用场合。

有6个可任意设定的高、低位报警点及2个自动生成的异常高、低报警输出，可与各种系统自动控制功能配合使用。

具有料仓深度测量功能，可用于对未知深度的料槽进行槽深数据丈虽。

控制面板采用128X64 LCD多窗口中文显示（或其它语种）。

在自动测定功能中，具有“T”、“T1+T2”、“C”三种测定间隔时间选择，可以有效地防止溢料或空仓。

停电时用户数据自动保存，复电后可自行恢复运行，无需重新设定数据

整机有多重机械及电气保护，以厦故障自诊断控制输出厦显示功能，便于维护、检修。

控制器电路结构合理并设置了多种抗干扰电路，可靠性高，抗干扰性能强。

控制箱采用双重密封结构，防水防尘性能良好

Product features

The use of hammer type probe, reliable, accurate measurement, hammer lifting torque, can be used in charging or discharging time It can

be used in higYi dust, water vapor and other occasions the material level detection

Has torque detection and control function, can effectively protect the motor, and the wire rope in buried hammer also will not be pulled off.

torque disappeared after can automatically recover to the determination of state

With automafic measurement. remote control and other functions. determination of prohibIted determination According to user needs to

6 can be arbitra…y set high and low alarm points and 2 automatic generation of abnormally high. low alarm output. can be used with a

varietyof automatic control functions

With the depth bin measurement function. can be used for the trough of unknown depth of groove depth measurement data

Control panel using LCD 1 28X64 multi window Chinese display(or other languages)-

In an automatic measuring function. with "t". "T1. T2' and "C'- three determination time interval choice. can effectively prevent the overflow

of material or short positions

When power user data is automatically saved, the complex could return to operation, no need to reset the data

The machine has multiple mechanical and electrical protection. and fault self diagnosis output control and display function. convenient

maintenance and maintenance

The circuit struaure and set up reasonable coniroHer circuit, anti-lamming multiple high reliability. strong anti-jamming performance

The control box adopts double sealing structure. waterproof and dustproof performance is good
